Workday RaaS

Follow these steps to configure and connect Workday via Report as a Service (RaaS) successfully.

This guidance assumes you have administrative privileges for your Workday account.

Workday Report as a Service (RaaS) allows you to create custom reports and expose them as web services for integration purposes. This guide walks you through setting up an Integration System User, creating and sharing a web‑service‑enabled Advanced custom report, configuring security group permissions, and connecting it through the integration platform.

Set Up an Integration System User (Optional)

Setting up an Integration System User (ISU) is recommended but optional. You can use an existing Workday user account with appropriate permissions instead. The key requirement is having valid credentials (username and password) with access to create and manage custom reports.

1. Go to Create Integration System User

   Search for and open the Create Integration System User task.


2. Enter account information

   Enter a username and strong password in the Account Information section, then click OK to create the user.



Create and View a Custom Report (Optional)

1. Go to Create Custom Report

   Search and navigate to the Create Custom Report task


2. Configure custom report

   Follow the steps below to configure the custom report:

   • Report Name: Must be unique within the tenant
   • Report Type: Select Advanced
   • Optimised for Performance: Tick this box to enhance performance
   • Data Source: Choose the appropriate data source based on the data you need (e.g. Workers for HCM reporting).



   Click OK to continue.

   Add and configure report fields:

   • Click the + icon to add a field.
   • Select a Business Object (e.g. Worker) in the Business Object column.
   • Choose the specific field (e.g. Employee ID) in the Field column.
   • Set aliases in Column Heading Override to ensure stable field names in API responses.

   The Column Heading Override XML Alias column will appear only after you enable Enable As Web Service under the Advanced tab and save the report. You can view this column when you return to edit the report.

   Add the following field aliases in your report. The aliases serve as stable identifiers for the API responses but the underlying fields must be properly configured.

   • Employee_ID
   • First_Name
   • Last_Name
   • Display_Name
   • Email_Work
   • Email_Home
   • Phone_Work
   • Phone_Home
   • Job_Title
   • Hire_Date
   • Gender
   • Date_Of_Birth
   • Termination_Date
   • Company_Name


3. Configure report filters (Optional)

   Add filters to narrow the result data set (e.g. Supervisory Organisation – Primary Position).


4. Configure report prompts

   • Tick Populate Undefined Prompt Defaults to make prompt default fields visible in the report table. Once the Prompt Defaults grid is visible, the Populate Undefined Prompt Defaults field will be automatically unticked.
   • Tick Display Prompt Values in Subtitle to enable prompt display.


5. Configure advanced options

   Tick Optimised for Performance and Enable As Web Service. Leave other advanced options unchanged.



   Click OK to save the report.

6. Go to View Custom Report

   Search for View Custom Report, select the report you just created, then click OK to open it.


7. Retrieve the Report URL

   Open the three‑dot menu, select Web Service > View URLs; you will be redirected to the View URLs Web Service page.



   Right‑click the Workday XML link and copy its URL.



Connecting to StackOne

Use the ISU Username, ISU Password, and Report URL to create a connection.

After connecting and calling the unified List Employees endpoint, you may see:

1. A response with all fields populated.
2. A response with fields present but values are null.
3. An error: The task submitted is not authorized.
4. An error: Report not found.

Scenario 1 = successful configuration.
Scenario 2 = missing Security Group permissions for the ISU.
Scenarios 3 & 4 = insufficient report access for the ISU credentials used.

Proceed to Configure Security Group Permissions for the ISU (Required for non‑null data) and Configure Custom Report Access for the ISU (Required for report access) to resolve issues.

Configure Security Group Permissions for the ISU (Required for non‑null data)

1. Create a Security Group

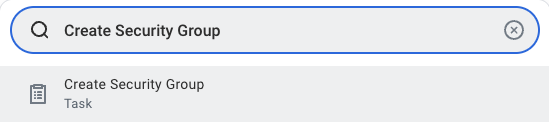

   Search for and open the Create Security Group task.

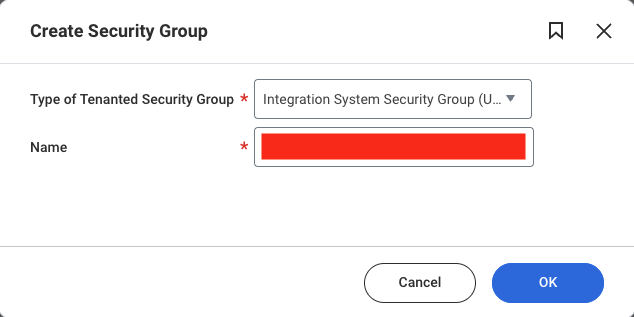

2. Select type of Tenanted Security Group

   Choose Integration System Security Group (Unconstrained) and enter a name for the Security Group.



   Click OK.

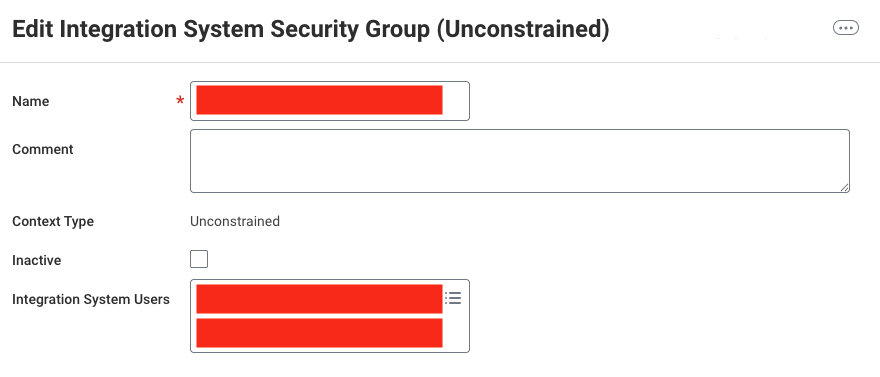

3. Assign the ISU to the Security Group

   Select Integration System Users. Pick the ISU created earlier (or another integration user).



   Click OK to save.

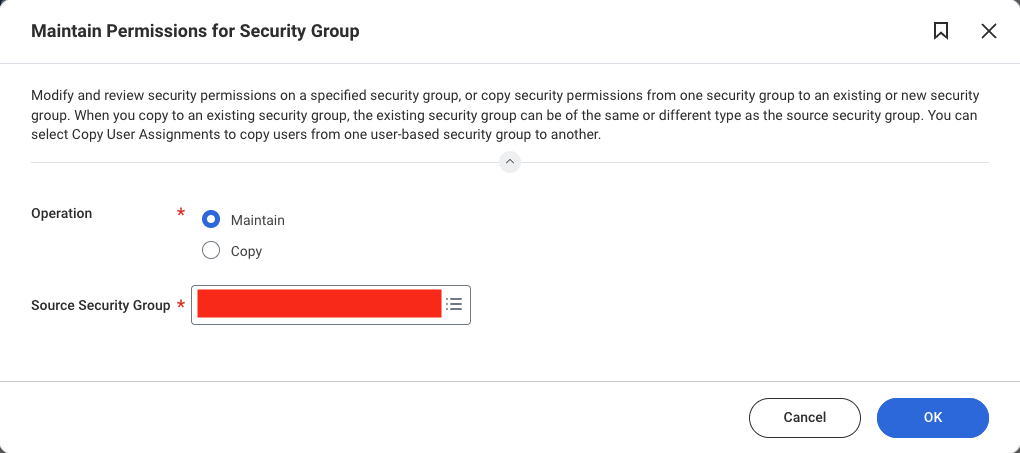

4. Go to Maintain Permissions for Security Group

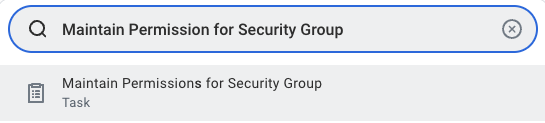

   Search for Maintain Permissions for Security Group and open it.



   Select the Security Group you created in the steps above.


5. Configure Domain Security Policy Permissions

   Set required Domain Security Policy Permissions to Get Only in the View/Modify Access column. Common Domain Security Policy Permissions are listed below:



   Please note that Domain Security Policy Permissions can be customised within a Workday organisation, and this list does not account for such customisations.

   Domain Security Policy	View/Modify Access
   Job Information	Get Only
   Person Data: Date of Birth	Get Only
   Person Data: Ethnicity	Get Only
   Person Data: Gender	Get Only
   Person Data: Home Email	Get Only
   Person Data: ID Information	Get Only
   Person Data: Marital Status	Get Only
   Person Data: Personal Data	Get Only
   Person Data: Work Email	Get Only

   Depending on the fields included in your custom report, additional Domain Security Policy Permissions may be required. If you encounter null values in the API response, review and add the necessary permissions accordingly.

6. Activate security changes

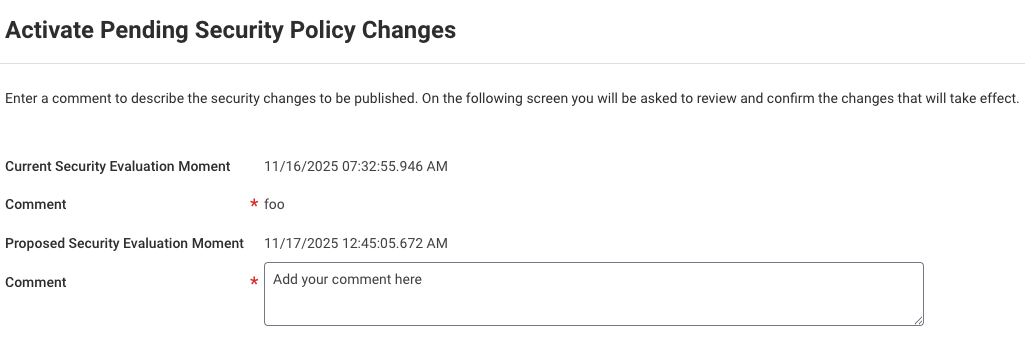

   Search for Activate Pending Security Policy Changes and open it.



   Optionally add a comment, then continue.

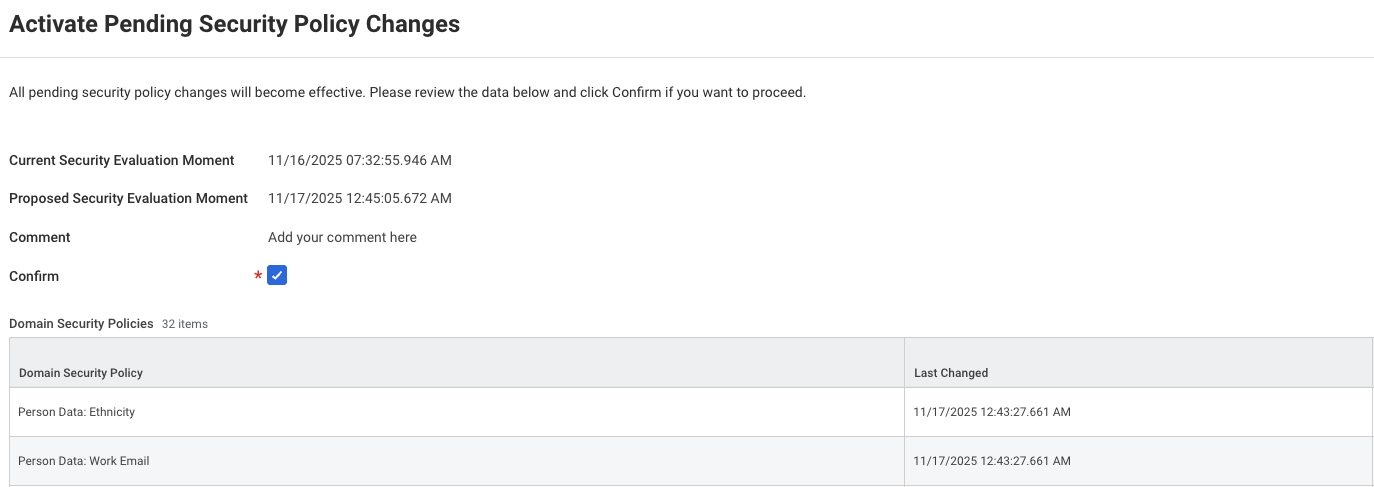

   Review the summary, tick the confirmation box, and click OK.



   You must activate security changes each time you modify Domain Security Policy Permissions; otherwise changes will not take effect.

Configure Custom Report Access for the ISU (Required for report access)

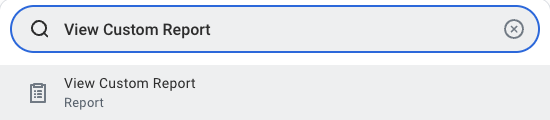

1. Open the report

   Search for View Custom Report.



   Select your custom report.

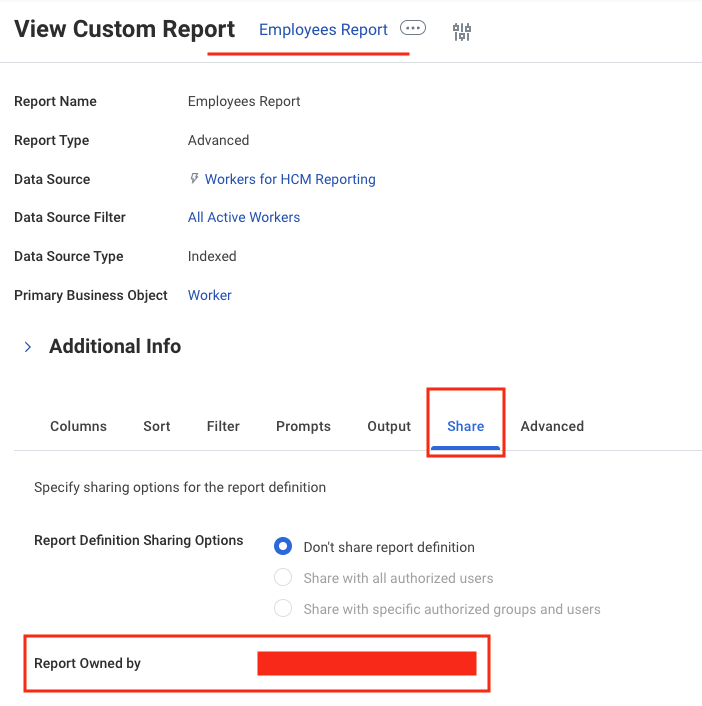

2. Check current ownership

   Navigate to the Share tab and view the Report Owned by value.


3. Transfer ownership (if required)

   Transferring ownership revokes access from the current owner.
   After transferring, ensure you reconnect in the StackOne Connector Hub using the new owner’s ISU credentials; otherwise you will encounter the The task submitted is not authorized error.

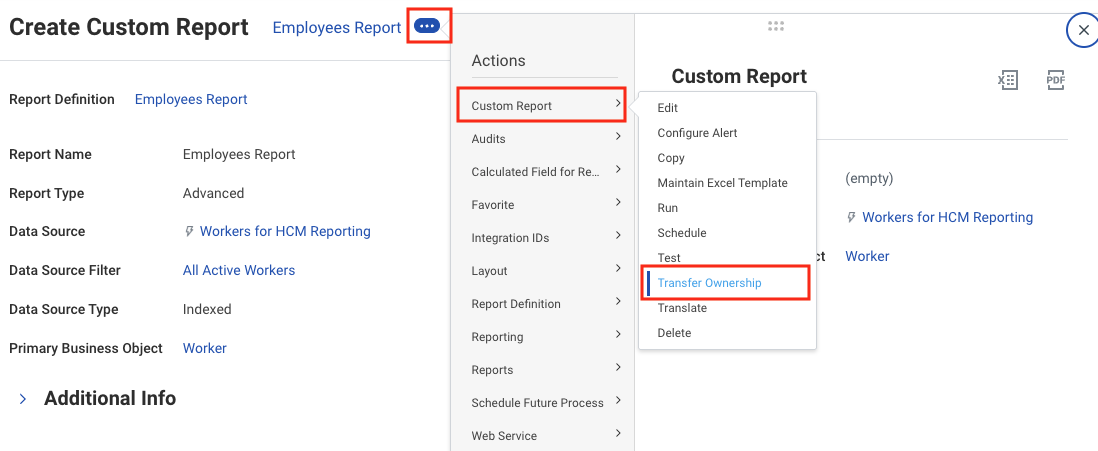

   If the current owner is not the ISU you intend to use to connect with StackOne, open the three‑dot menu under Custom Report and select Transfer Ownership.

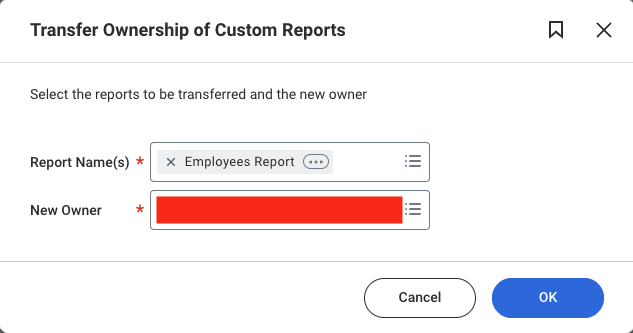

   Enter the new ISU username in New Owner and click OK.

   If you cannot find the ISU in the New Owner dropdown, you can share the report access without transferring ownership as described in the next step Grant access without transferring ownership.


4. Grant access without transferring ownership

   Granting access retains the current owner. Authorised users can access the report and connect via the StackOne Connector Hub using their ISU credentials and the Report URL.

   To grant access, choose Edit under Custom Report from the three‑dot menu.



   Three options exist under Report Definition Sharing Options; the appropriate option for controlled user access is described in this guide.

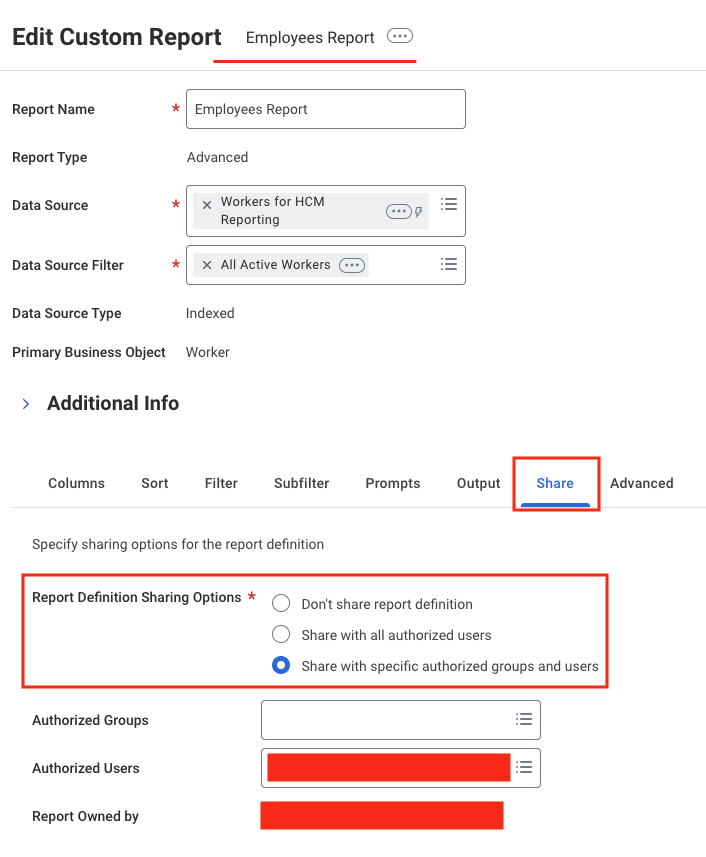

   Go to the Share tab, select Share with specific authorized groups and users, choose the desired ISU in Authorized Users, then click OK.

   Report Definition Sharing Options Explained

   • Do Not Share Report Definition: Only the owner can access and retrieve data through the Report URL. If ownership changes or other ISU credentials are used, errors such as Report not found or The task submitted is not authorized may occur.
   • Share with All Authorized Users: All ISU users can access the report. Ownership should remain with the report creator; otherwise StackOne connections using other users’ credentials may encounter a Report not found error.
   • Share with Specific Authorized Groups and Users: Restrict access to selected groups/users.
     • No selection acts like Do Not Share Report Definition.
     • Selecting users allows both owner and selected ISU users to access the report (ownership must still stay with the report creator to avoid a Report not found error).



Troubleshooting

1. Authentication (401 Unauthorized)/Authorization (403 Forbidden) errors

   • Verify that the ISU username and password are correct in the StackOne Connector Hub.
   • Ensure the credentials have not expired or been changed.
   • Confirm the ISU has the necessary security group permissions configured.
2. 502 The task submitted is not authorized error

   • Ensure the ISU has access to the custom report (either as owner or through authorized user sharing).
   • Verify the report ownership configuration matches the ISU credentials being used.
   • If ownership was recently transferred, reconnect in the StackOne Connector Hub with the new owner’s credentials.
3. Report not found error

   • Verify the Report URL is correct and reachable.
   • Ensure the ISU has access to the report through ownership or authorized user sharing.
   • Check that the report is enabled as a web service in Advanced settings.
4. Null field values

   • Add missing Domain Security Policy Permissions as described in the security configuration section.
   • Activate pending security policy changes after modifications.
   • Retry the endpoint (fields populate once permissions are effective).
